Execution standard: GB/T 7551-1997 Certificate (eqv OIML R60) Combined error: 0.015% Sealed to IEC 529: Protection grade: IP67 or IP68. Protection against total immersion in water for 30 minutes at a pressure corresponding to a 1 m head of water. |
|

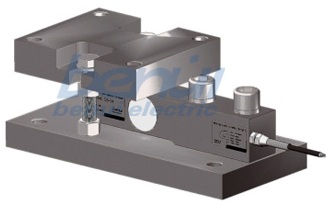

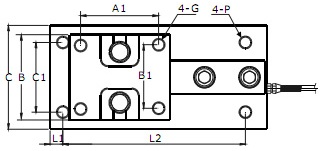

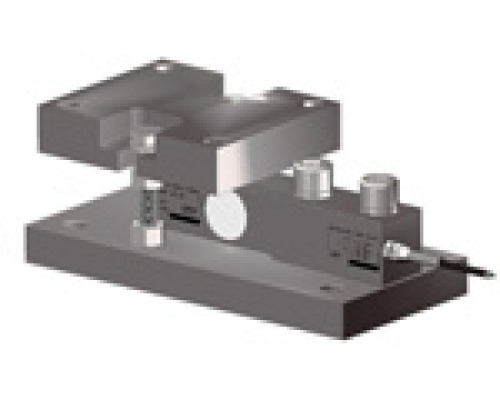

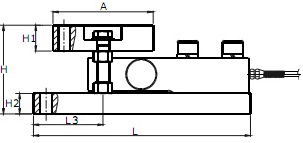

Dimensions
(In mm. 1mm = 0.03937 inches)
CAP./SIZE |
A |
A1 |
B |
B1 |
C |
C1 |
L |
L1 |
L2 |
L3 |
H |
H1 |
H2 |
G |
P |
0.5,1,2,3t |
150 |
124 |
128 |
102 |
112 |
80 |
286 |
32 |
226 |
96 |
102 |
28 |
23 |
M10 |
13 |
5,8t |
178 |
146 |
152 |
120 |
152 |
102 |
318 |
32 |
257 |
99 |
130 |
38 |
30 |
M16 |
17 |
10t |
184 |
152 |
154 |
122 |
154 |
106 |
360 |
32 |
295 |
105 |
168 |
45 |
45 |
M20 |
21 |
15~25t |
220 |
170 |
220 |
170 |
220 |
170 |
400 |
25 |
300 |
115 |
213 |
55 |
55 |
M24 |
26 |

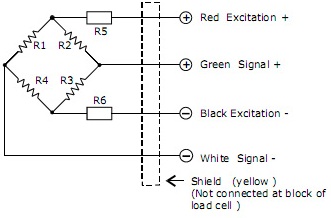

Circuit Diagram:
Electrical Termination
4 Core cable standard lengths:
0.5~3t: 3m,5~8t: 7m, 10t: 9m, 20t: 12m
Diameter: Φ6
Connection:
Refer to the following drawing:
Notice: Do not change the length of cable, or lese, it will effect the sensitivity of loadcell.
Specification
Item Parameter |
C3 |
Unit |
Rated load (Emax): |
0.5,1,2,3,5,8,10,20 |
t |
Maximal numbers of load cell verification Intervals (Nlc): |
3000 |
d |
Minimum load cell verification intervals Intervals ( Vmin): |
0.01 |
% of rated load |
Rated output (Cn): |
2.0±0.1% |
mV/V |
Combined error: |
0.015 |
-% of rated output |
Temperature effect on sensitivity(Tkc): |
0.0012 |
=% of rated output/ |
Temperature effect on zero balance(Tk0): |
0.0008 |
-% of rated output |
Zero balance: |
1.0 |
-% of rated output |
Input resistance(Rlc): |
385±5 |
Ω(Ohms) |
Output resistance(Ro): |
351±2 |
Ω(Ohms) |
Insulation resistance: |
≥5000 |
MΩ (Mega-Ohms) |
Safe overload: |
150 |
% of rated capability |
Ultimate overload: |
300 |
% of rated capability |
Operating temperature range: |
-20~+70/-20~+160 |
℃/ °F |
Recommend excitation: |
8~15 |
V( DC or AC) |
Maximum excitation: |
18 |
V( DC or AC) |
Material of elastomer: |
Alloy steel / Stainless steel |
|
Protection class: |
IP67/IP68 |
